4 Ton Telescopic Boom Truck Loader Crane

I'm Online Chat Now
Certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
China Xuzhou Truck-Mounted Crane Co., Ltd certification
Your quality is trusty, we are pleased to choose this reliable partner

—— Minas Gerais

Your good service and prompt reactions are greatly appreciated, your porducts are also highly impressed me by it's good quality and competitive price.

—— S.Sahota

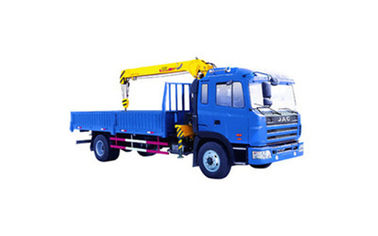

4 Ton Telescopic Boom Truck Loader Crane

4 Ton Telescopic Boom Truck Loader Crane
4 Ton Telescopic Boom Truck Loader Crane 4 Ton Telescopic Boom Truck Loader Crane

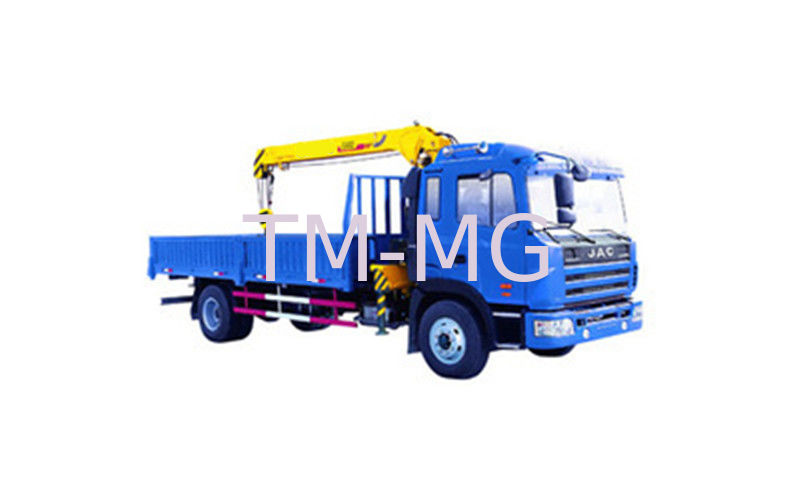

Large Image :  4 Ton Telescopic Boom Truck Loader Crane Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE, ISO
Model Number: SQ4SK3Q
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: 20 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 5000pcs/year
Detailed Product Description
Product Name: 4 Ton Truck Loader Crane Color: Blue, Red, Yellow,white,etc
High Light:

Truck Loading Crane

,

Lorry-Mounted Crane



4 Ton Transporting Truck Loader Crane , 11m Lifting Height



  1. Name: Telescopic boom crane, Telescoping boom crane, Hydraulic truck crane
  2. Max Lifting Capacity: 4 ton
  3. Max Lifting Moment: 8.40/10 T.M
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max.Lifting height:11meters
  6. Brand: XCMG
  7. Crane Weight: 1396 kg
  8. Oil Tank Capacity: 60 L
  9. Feature: Safety transportion, driven by hydraulic, move fast, The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arms are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.

Telescopic boom crane  SQ4SK3Q is lifting capacity is 4tons, moment is 8.4T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­



Specifications:



Model

SQ4SK3Q

Unit

Max Lifting Capacity

4000

kg

Max Lifting Moment

8.40/10

T.M

Recommend Power

16

kw

Max Oil Flow of Hydraulic System

25

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

60

L

Rotation Angle

360° All Rotation

Crane Weight

1396

kg

Installation Space

850

mm

Choice of Chassis

EQ1092FJ;

EQ1092FJ1;

EQ1092F3GJ1;

EQ1081GJ12D5;

DFL1120B;

LZ1120LAPT;

HFC1132KR1K3;

EQ5121GFJ;

HFC1083K103R1D;

EQ1110GLJ3;

EQ1120GLJ;

EQ1168TLJ;

BJ1122V4PBB-A1;

BJ1158VKPFK-2



SQ4SK3Q Lifting capability diagram

Working radius (m)

2.5

3.4

5.4

7.4

9.42

Lifting capacity (kg)

4000

2600

1600

900

400





Dimension drawing


 4 Ton Telescopic Boom Truck Loader Crane 0




 Optional parts:



1. Moment limited device
4 Ton Telescopic Boom Truck Loader Crane 1

  1. Remote control equipment
    4 Ton Telescopic Boom Truck Loader Crane 2
  2. Anti-overwind magnet valve
     4 Ton Telescopic Boom Truck Loader Crane 3
  3. High seat on column
    4 Ton Telescopic Boom Truck Loader Crane 4
  4. Work light
    4 Ton Telescopic Boom Truck Loader Crane 5
  5. Assisatant stabilizer leg
    4 Ton Telescopic Boom Truck Loader Crane 6



Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm






Competitive Advantage:



1, Single cylinder synchronization guy cable technology make work efficiency more higher than before

2, Advanced development means make sure that the design is very reliable

3, The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity

4, Compact Hinge point design take up smaller space

5, The work is more safety after fitted with overwind alarm equipment

6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system

7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling

8, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

9, Anti-Slewing impulse equipment that make vehicle running safely.
