|Boom Type:||Telescopic Boom||Max. Lifting Capacity:||2.1 Ton|
|Max. Lifting Moment:||4.2 T.M||Max. Lifting Height:||10m|
|Oil Tank Capacity:||25L||Installation Space:||850mm|
telescoping boom crane,
telescopic truck crane

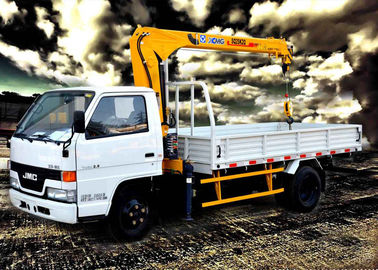

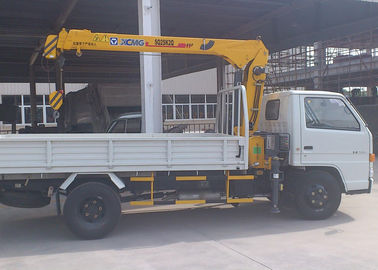

Transportation Boom Truck Mounted Crane
Name: Telescopic boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
Max. Lifting Capacity: 2.1 ton
Max. Lifting Moment: 4.2 T.M
Max. Oil Flow of Hydraulic System: 20 L/min
Max. Lifting height:10meters
Crane Weight: 950 kg
Oil Tank Capacity: 25 L
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.
It is called vehicular articulated boom lift, also named vehicle folding arm lift. This type lift could be used in large space, with 360degree working scope in the aerial.
At the ground, one worker control the truck to move forward and backward. In aerial, single operation, adjusting the lifting height. Lifting power and traveling power are all from the truck, with hydraulic system, diesel power.
Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 2 to 25 ton and outreach over 20 meters.
Telescopic boom crane SQ2SK2Q is lifting capacity is 2.1tons, moment is 4.2T.M.
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
|Max. Lifting Capacity||2100||kg|
|Max. Lifting Moment||4.2||T.M|
|Max. Oil Flow of Hydraulic System||20||L/min|
|Max. Pressure of Hydraulic System||16||MPa|
|Oil Tank Capacity||25||L|
|Rotation Angle||All Rotation|
|Choice of Chassis||
SQ2SK1Q Lifting capability diagram
|Working radius (m)||2.10||2.50||3.00|
|Lifting capacity (kg)||2100||1600||1000|
1. Moment limited device
1,Single cylinder synchronization guy cable technology make work efficiency more higher than before
2, Advanced development means make sure that the design is very reliable
3, The more symmetrical center design of pentagon&hexagon boom make it has bigger anti-bendding capacity.
4, Compact hinge point design take up smaller space.
5,The worK is more safety after fitted with overwind alarm equipment
6, The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system
7, Float three-point bridge structure design can lower the accessional stress on the chassis when traveling
8,Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation
9, Anti-slewing implulse equipment that make vehicle running safely.
