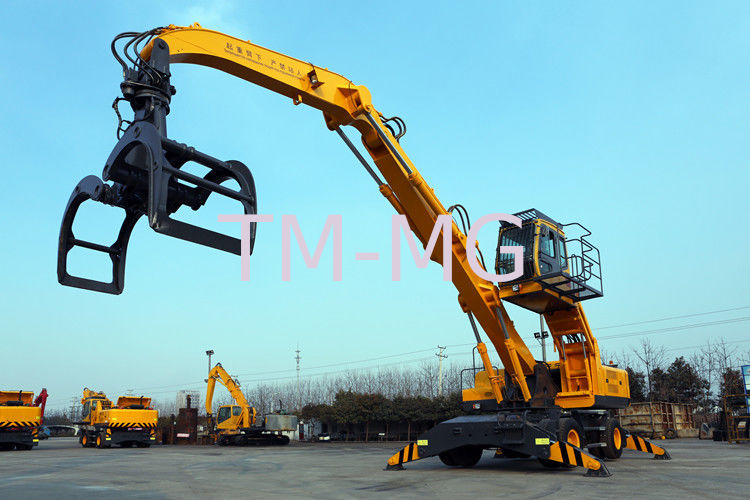

200L Fuel Tank Bulk Material Handling Equipment Loading And Unloading Stacking

200L Fuel Tank Bulk Material Handling Equipment Loading And Unloading Stacking
200L Fuel Tank Bulk Material Handling Equipment Loading And Unloading Stacking 200L Fuel Tank Bulk Material Handling Equipment Loading And Unloading Stacking

Large Image :  200L Fuel Tank Bulk Material Handling Equipment Loading And Unloading Stacking Get Best Price

Product Details:
Place of Origin: China
Brand Name: ccmie
Certification: ISO
Model Number: QLYS6DZ
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Ro-Ro
Delivery Time: in 30 days
Supply Ability: 1000pc/year
Detailed Product Description
Electric Motor: 45kw Max. Working Pressure: 20mpa
Total Weight: 15.1T Fuel Tank: 200L
Engine: 65kw
High Light:

coal handling equipment

,

coal handling system





QLYSDZ Series material handler has the following features:



* Equipped with an internal combustion engine, "dual-power" system alternatively driven to operate by 380V      electrical power and an interflow and interlock(patented technology) apparatus for hydraulic system.



* Equipped with protective apparatuses for overflowing, overload, over-heating and electric leakage in electric operations.



* Equipped with mechanism of automatic identification of phase sequence to prevent fuel pumps from reversing.



* Equipped with mechanism of electricity cut-off, fuel cut-off and self-locking and self-stop protection for the hydraulic system.



* Multiple compound moves in operation to improve working efficiency.



* The hydraulic system is equipped equipped with air-cooling radiator.



* The grabbing apparatus can automatically rotate at 360 degree and change directions.



* The driving cab can be installed as controllable lifting type.



* Can be installed with air conditioner with cooling and warming functions.



* Equipped with a suspension seat in conformity with ergonomics.





Overall length 8140mm Engine power 65kw
Overall height 3265mm Electric motor 45kw
Overall width 2827mm Fuel tank 200L
Wheelbase 2800mm Total weight 15.1t
Tail slewing radius 2623mm Working speed 15km/h
