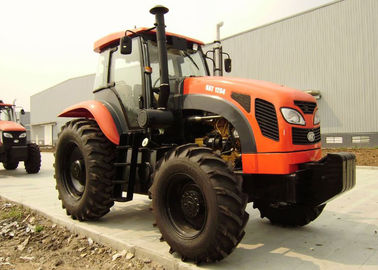

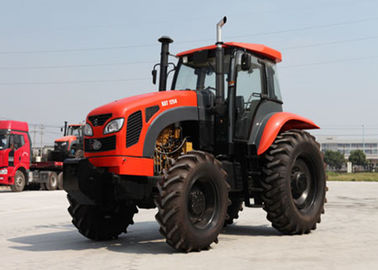

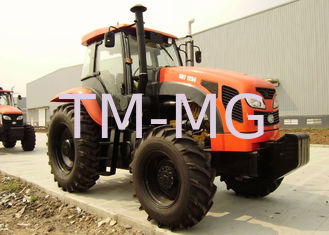

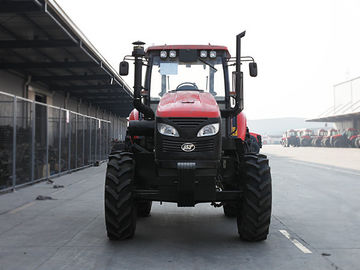

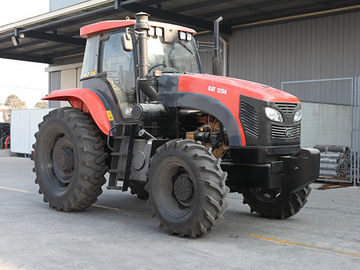

125HP Farm Tractor, Agricultural Farm Implements

125HP Farm Tractor, Agricultural Farm Implements
125HP Farm Tractor, Agricultural Farm Implements 125HP Farm Tractor, Agricultural Farm Implements 125HP Farm Tractor, Agricultural Farm Implements 125HP Farm Tractor, Agricultural Farm Implements

Large Image :  125HP Farm Tractor, Agricultural Farm Implements Get Best Price

Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: ISO
Model Number: KAT1254A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Ro-Ro
Delivery Time: in 30 days
Payment Terms: 30% deposit, balance before shipment
Supply Ability: 10000pcs/year
Detailed Product Description
Net Power Of Engine: 92(125)kW(HP) Driving Method: 4x4(Four-wheel Drive
Dimension, Length/Width (tread) /Height (Cab Top): 5410/2305/3030 Wheelbase: 2790
Rated Traction Force: 31Kn Minimum Working Weight: 5960Kg
High Light:

luffing tower crane

,

XCMG tower crane



Durable Agriculture 125HP Farm Tractor , 4x4 Agricultural Farm Implements



Standard Configuration and Technical Data



Shangchai dour cylinder engine ( with turbocharger and air cooler) is designed with fully enclosed cab, air heater, 14+7 shifts of transmission, shifting synchronizer, integrated frame, driving system with modularized structure, rear axle for engineering machinery, caliper disc brake, revolution for power output shaft of 540r/min, and1000r/min, fully hydraulic front wheel steering, two groups of single/dual action hydraulic output, plough depth control method by force control, position control, and comprehensive control, and suspension mechanism of rear-mounted Category II andfront counterweight is 288KG



Specification



Items

Unit

KAT1254A

Net Power of Engine

kW(HP)

92(125)

Driving Method



4x4(Four-wheel drive

Dimension, Length/Width (tread) /Height (Cab Top)

mm

5410/2305/3030

Wheelbase

mm

2790

Wheelbase of Front Wheel

mm

1846-2148

Wheelbase of Rear Wheel

mm

1838-2142

Minimum Ground Clearances

mm

450

Minimum Steering Circle Radius

mm

6600

Minimum Working Weight

kg

5960

Front Counterweight≤

kg

288

Rated Traction Force

kN

31

Power Output Shaft

Model



Independent Rear-mounted

Standard RPM

r/min

540 or 1000

Maximum Lifting Force

kN

31

forward gear

Low RPM

The number of stalls



7

Driving Speed

km/h

2-17

High RPM

The number of stalls



7

Driving Speed

km/h

3-30

Reverse Shift

The number of stalls



7

Driving Speed

km/h

2-20

Specification of Tire

Front Wheel



14.9-26R1

Rear Wheel



18.4-38R1

Diesel Engine

Nominated Power/RPM

kW/r/min

92/2100

Nominated Working Condition Fuel Oil Consumption Rate

g/kW·h

≤230





Features of KAT series high horsepower Tractor (with modularized structure)



A.Easy to add accessories

With integrated frame and independent expandable PTO may easily add such accessories as loading, excavation, bulldozing, well digging, and lifting etc. to expand functions of tractor and increase utilization rate of tractor.

B.Easy to utilize matured technology
Adoption of matured technology in loading truck, engineering machinery, and other industry may directly be made for product components. For example, application of such technologies as caliper disc brake, wet clutch, synchronizer, fuel and gas booster etc may accelerate to upgrade technology of large-power tractor products relying on developing advantages in the other industries.

C.Easy to expand portfolio of product
Adoption of matured products from loading truck, engineering machinery, and agricultural machinery are made for the components. For each type of product, different series of specification have been designed. Optimized portfolios of these series of components have formed products with different power ranges, which may greatly reduce developing cycle of products. Over four years, eight models with more than 30 variants have totally been developed by 110-280 HP in successively, where mass production has been made for six models.

D.Easy to meet user requirement of individualization
Adjustment of speed ratio of transfer box may have different speed with different shifts to meet agricultural requirements of refinement in different areas. Adjustment of speed ratio of final transfer box may meet the requirements of downstream output rpm against different countries. The tractors may be customized according to users requirements against functional modules.

E.Easy to organize mass production
Adoption of general components has been made for modularized structures to fully utilize social resources and professionalized production and manufacturing platform in XCMG Group. Large-scale fixed assets is unnecessarily invested to produce wheel type of large tractor with high power in mass production, which may change traditional production organization method of tractor and solve current production bottleneck for production of large traditional tractor.

F.Easy to Service
All possible defects can easily be found and easy maintenance may be made due to modularized structure.
