4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic

4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic factory 4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic factory

Large Image : 4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic

Product Details:

Place of Origin:China
Brand Name:XCMG
Certification:CE, ISO
Model Number:SQ4ZK2

Payment & Shipping Terms:

Minimum Order Quantity:1pc
Price:negotiate
Packaging Details:Ro-Ro
Delivery Time:20 days
Payment Terms:30% deposit, balance before shipment
Supply Ability:10000pcs/year
Detailed Product Description


4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic



  1. Name: Knuckle boom truck mounted crane, Folding boom truck crane, Lorry mounted crane
  2. Max Lifting Capacity: 4 ton
  3. Max Lifting Moment: 8.4 t.m
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max. Lifting height:10meters
  6. Brand: XCMG
  7. Crane Weight: 1200 kg
  8. Oil Tank Capacity:60 L
  9. Feature: Safety transportion, driven by hydraulic, move fast, The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ4ZK2 is used for lifting 4tons, moment is 8.4T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

­



Specifications:



Model

SQ4ZK2

Unit

Max Lifting Moment

8.4

t.m

Max Lifting Capacity

4000

kg

Recommend Power Needed At Recommend Oil Flow

14

kw

Max Oil Flow of Hydraulic System

25

L/min

Rated Pressure Of Hydraulic System

26

MPa

Oil Tank Capacity

60

L

Rotation Angle

370

.

Crane Weight

1200

kg

Installation Space

850

mm

Choice of Chassis

EQ1092FJ1 ;EQ1092FJ ;DFL1120B D530 ;EQ1081GJ12D5 ;

HFC1132KR1K3 ;LZ1120LAPT;HFC1083K103R1D ;

EQ1092F3GJ1 ;EQ5121GFJ ;

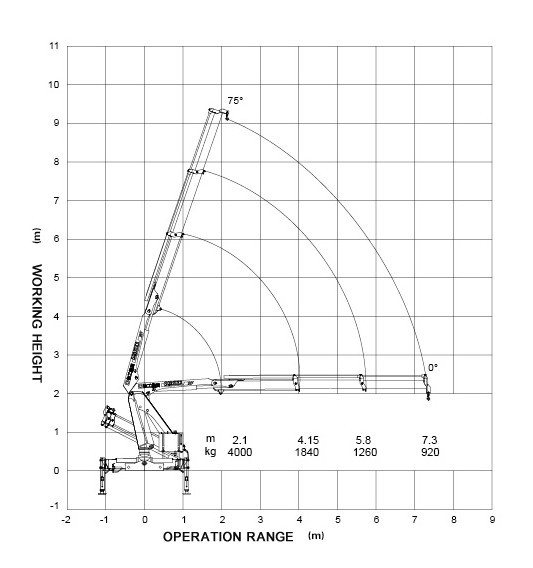

SQ4ZK2 Lifting capability diagram

Working radius (m)

2.1

4.15

5.8

7.3

Lifting capacity (kg)

4000

1840

1260

920





Dimension Drawing:



4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic



4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic





Optional parts:

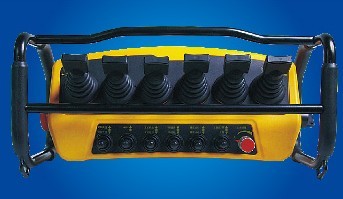

1.Remote control equipment



4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic



2.Moment limited valve



4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic



3.High seat on column



4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic

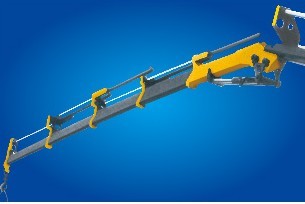

4.JIB



4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic



5.Assisatant stabilizer leg



4 Ton Knuckle Arm Articulated Boom Crane , Driven By Hydraulic



Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm





Competitive Advantage:



1, Advanced development & analysis means make sure design is very reliable

2, Higher lifting capacity with tour Connected bar mechanism

3, Flange telescopic boom coupling technology

4, Self-designed & developed slewing machine with greater drive force can  meet varied requirements of working situation

5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity

6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling
